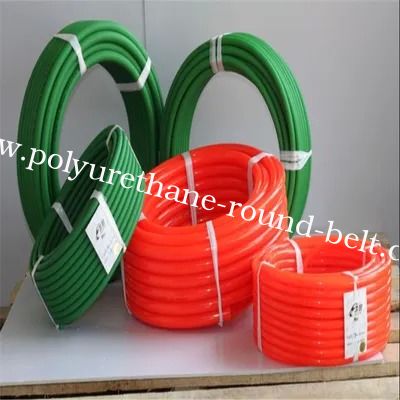

Oil-Resistant Polyurethane Round Belt with Shore A 90 Hardness and Diameter 2-20mm for Drive Transmission

  • Oil-Resistant Polyurethane Round Belt with Shore A 90 Hardness and Diameter 2-20mm for Drive Transmission
الحد الأدنى لكمية 1000
الأسعار 0.5

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
رقم النموذج JN20169 يكتب بو حزام دائري
مادة بو داخل المواد بو
سطح ناعمة أو خشنة قوة الشد 55 نيوتن / مم 2
نطاق القطر 2 ~ 20 مم صلابة 85 a ~ 90 a
معدل التمدد 1.5-3٪ أقصى معدل الشد kg (يختلف بقطر)
أقل دائرة نصف قطرها 20 ~ 160 مم طول لفة 30 ~ 400 م
قوة المسيل للدموع عالي مجموعة الضغط قليل
مقاومة التأثير عالي
إبراز

Oil-Resistant Polyurethane Round Belt,Shore A 90 Polyurethane V Belt,Diameter 2-20mm PU Round Belt

,

Shore A 90 Polyurethane V Belt

,

Diameter 2-20mm PU Round Belt
اترك رسالة
منتوج وصف
Abrasion-Resistant Polyurethane Round Belt

Our premium polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature poly cord reinforcement and are available with either smooth or rough surfaces to suit various operational requirements.

Product Features
  • Exceptional abrasion resistance for extended service life
  • High tensile and tear strength for demanding applications
  • Resistant to oils, fuels, and oxygen exposure
  • Excellent weatherability and impact resistance
  • Minimal compression set for consistent performance
  • Available in multiple diameters from 2mm to 20mm
  • Compatible with various connection methods including hot press welding
Technical Specifications
Diameter Min. Bend Radius Elongation Max. Tensile Hardness Roll Length
2mm (0.79") 20mm 1.5-3% 0.3kg (0.7lbs) 95A 400m
2.5mm (0.87") 22mm 1.5-3% 0.4kg (0.9lbs) 95A 400m
3mm (0.98") 25mm 1.5-3% 0.7kg (1.6lbs) 90A 400m
3.5mm (1.18") 30mm 1.5-3% 0.95kg (2.1lbs) 90A 400m
4mm (1.38") 35mm 1.5-3% 1.2kg (2.7lbs) 90A 200m
5mm (1.57") 40mm 1.5-3% 2kg (4.3lbs) 90A 100m
6mm (1.97") 50mm 1.5-3% 3.2kg (7lbs) 90A 100m
7mm (2.17") 55mm 1.5-3% 4.1kg (9lbs) 90A 100m
8mm (2.56") 65mm 1.5-3% 5kg (11lbs) 90A 100m
9mm (2.95") 75mm 1.5-3% 6.8kg (15lbs) 90A 50m
10mm (3.94") 100mm 1.5-3% 7.7kg (17lbs) 90A 50m
12mm (3.94") 100mm 1.5-3% 12.2kg (27lbs) 90A 30m
15mm (4.72") 120mm 1.5-3% 17.7kg (39lbs) 90A 30m
18mm (5.71") 145mm 1.5-3% 25.4kg (56lbs) 90A 30m
20mm (6.3") 160mm 1.5-3% 31.3kg (69lbs) 90A 30m
Common Applications
Newspaper conveying Packaging machinery Ceramic processing Tile production Woodworking equipment Textile machinery Paper industry Food processing Grading machines
